> Non-volatile memory recalls last flash pattern used at power up
> Multi-unit synchronization in simultaneous or alternating flash design
> Available with ECE R65,R10,SAE J595 Class1
> Build in 19 unique selectable flash patterns
Color Option

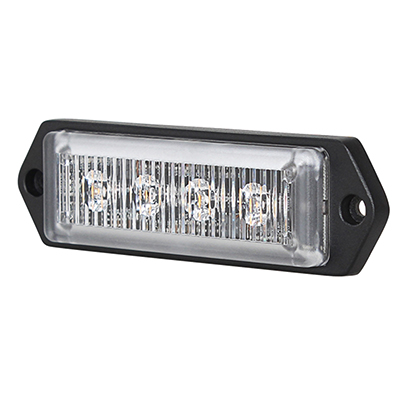

LH Thin LED Series:
| Item | Image | Specificatetion | Power |
Flashing Pattern | Dimension |

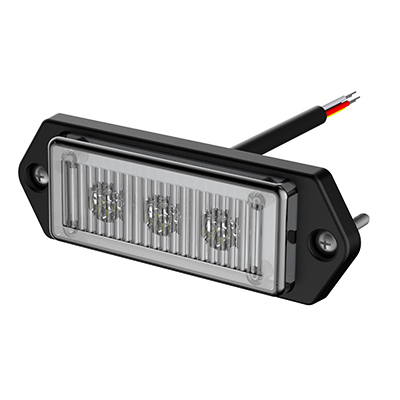

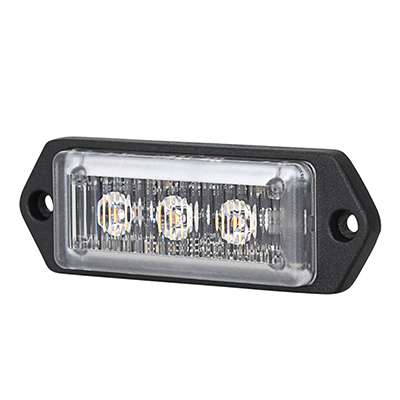

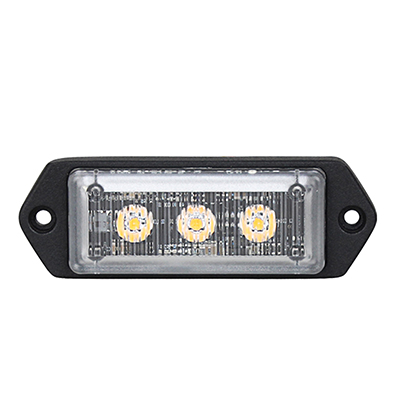

| LH103 |  |

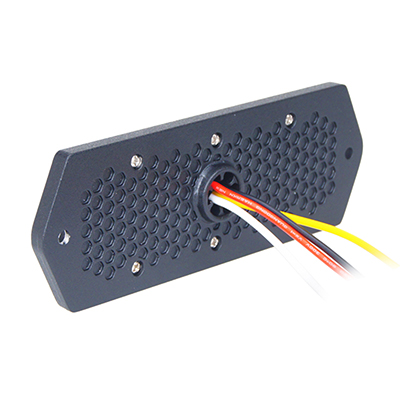

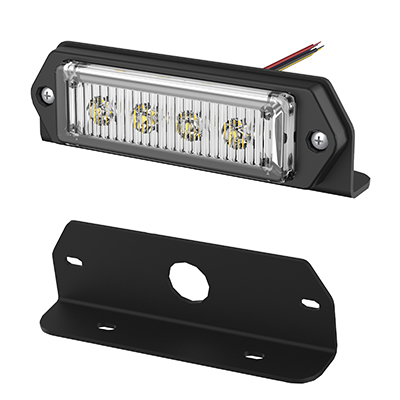

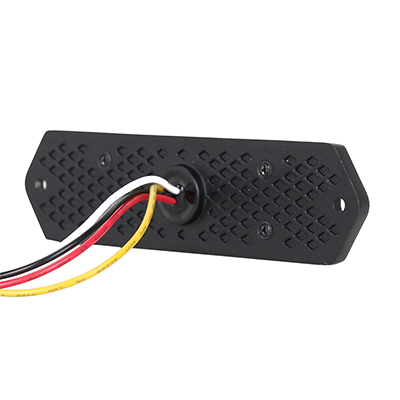

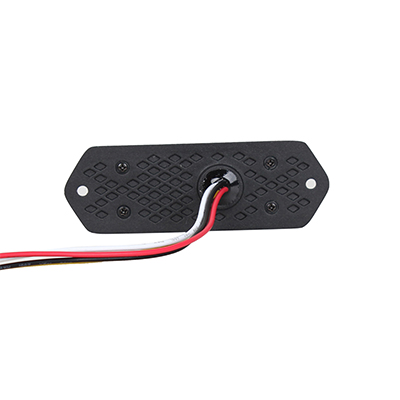

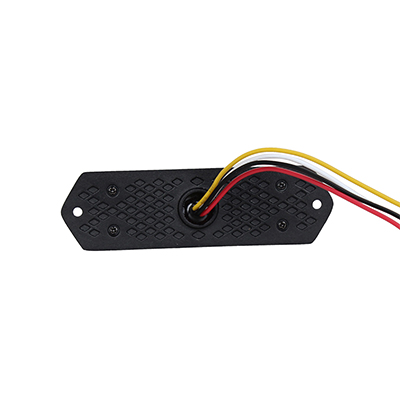

Operating Voltage:9-32V DC Temperature range:-40 to 65°C Lens:Clear lens Wires:Red-Vcc Black-GND Yellow-Flash Pattenrns& Sync White-Low Power Color:Red Amber White Blue Green Mount:Surface mount,Bracket mount Certification:ECE R65,ECE R10,SAE J595 |
9w | 11 | 94*32*11mm |

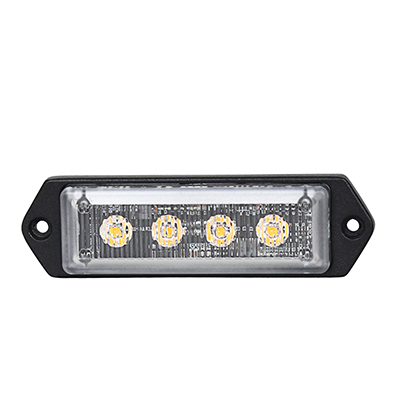

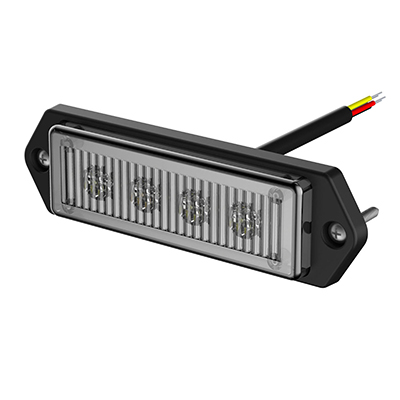

| LH104 |
 |
12w | 19 | 110*32*11mm | |
| LH106 |  |

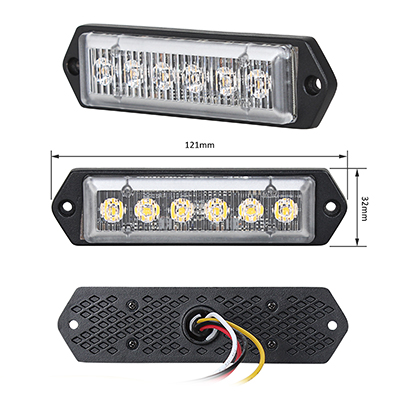

18w | 19 | 121*32*11mm | |

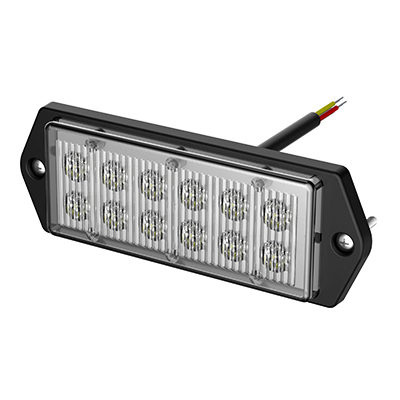

| LH112 |  |
36w | 19 | 121*43.5*11mm |
